Auto level
Stable measurements – even in high-vibration environments
Auto levels and digital levels determine height differences in almost any situation, including wet, dusty, or vibration-prone jobsites.
Easily, accurately and reliably measure levels of:
Elevations
Drainage systems
Structures
Frameworks
Windows
Ditches
Sewers
Foundations
Walls
Doors
Trenches
Manholes
Footings
Ceilings
Fixtures

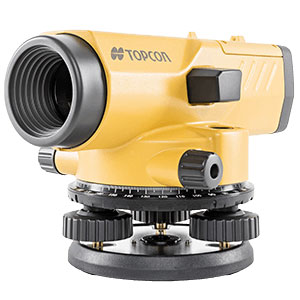

AT-B series
Instrument type
Key features
- 20-cm focusing for tight spaces
- Magnetic damping system minimizes vibration
- Light weight
Magnification
32x, 28x, 24x
Operating temperature
-20°C to 50°C
Dust / water rating
IPX6
B series
Instrument type
Auto level
Key features
- Precise, field-proven compensator
- Superior telescope with two-speed focus knob
- Quick collimation with two horizontal motion knobs
Magnification
32x, 28x, 24x
Operating temperature
-20°C to 50°C
Dust / water rating
IPX6
DL-500
Instrument type
Digital level
Key features
- “Wave and read” technology
- Stores up to 2000 measurements
- Inverse staff reading for ceiling measurements
Magnification
32x, 28x
Operating temperature
-4°C to 50°C
Dust / water rating
IPX4
SDL30
Instrument type
Digital level
Key features
- “Wave and read” technology
- 2000-point internal memory
- Four measurement modes: single-fine, repeat-fine, average and tracking
Magnification
32x
Operating temperature
-20 to 50ºC (-4 to 122ºF)
Dust / water rating
IPX4
SDL50
Instrument type
Digital level
Key features
- “Wave and read” technology
- 2000-point internal memory
- Measurement is less than 3 seconds (single & repeat modes)
Magnification
28x
Operating temperature
-20 to 50ºC (-4 to 122ºF)
Dust / water rating
IPX4
SDL1X
Instrument type
Digital level
Key features
- Intelligent auto focusing
- 10,000-point memory with USB and SD card slot
- 0.2mm precision (ISO17123-2)
Magnification
32x
Operating temperature
-20 to 50ºC (-4 to 122ºF)
Dust / water rating
IP54
